KSI

Seat covers

back to AUTOMOTIVE SECTOR

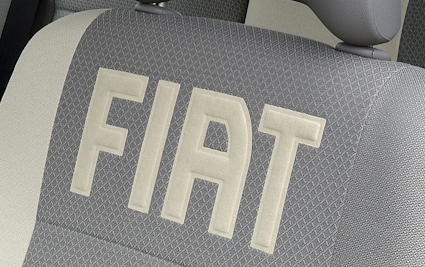

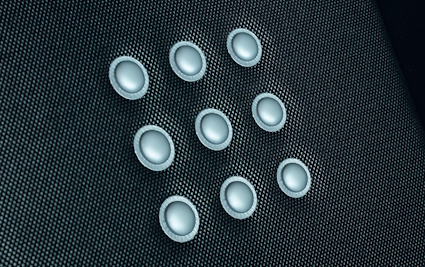

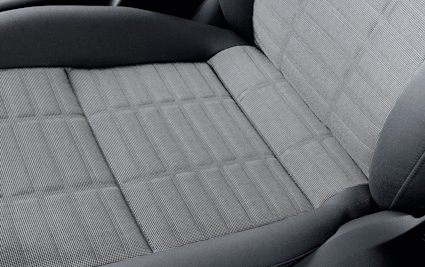

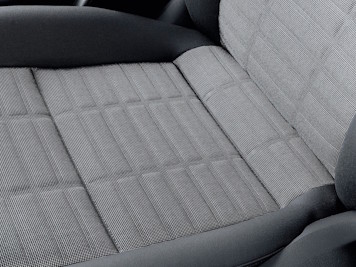

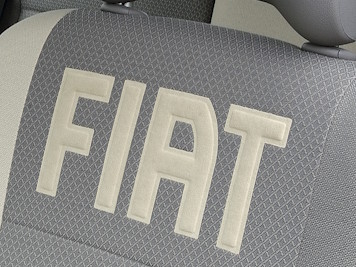

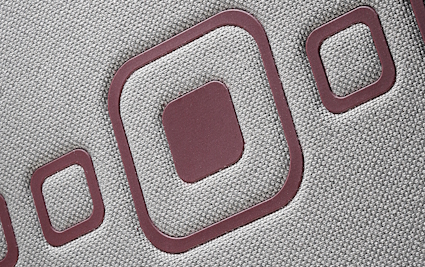

For logos welding (quilting, or PVC logos, or polyester logos) on seats covers

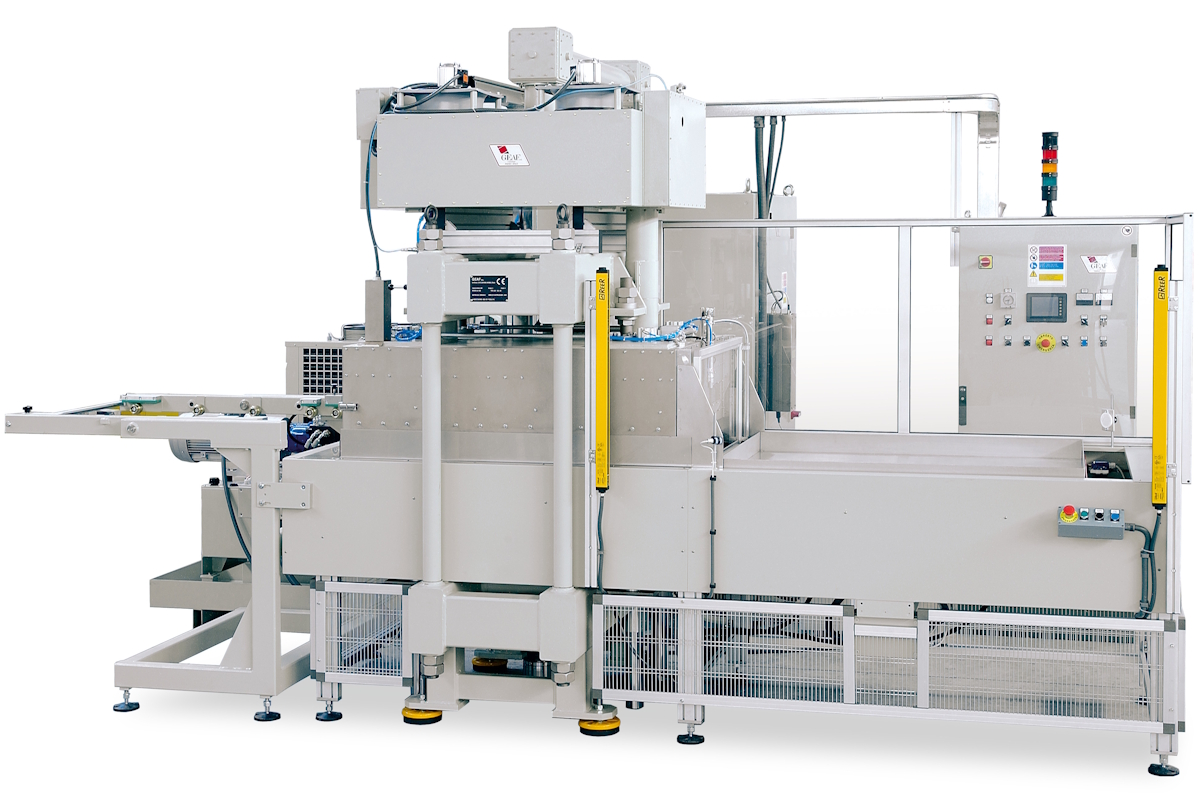

  • High frequency welding press hydraulically operated
  • High frequency generator in separate cabinet
  • 2 automatic over posed trays
  • Hydraulic power pack
  • Liquid circulation refrigerating unit
  • Runner for the electrodes-holder upper plate extraction (on demand)
  • Control panel with PLC and touch screen
Press maximum closing force: 20000 kg
Press upper and lower plate dimension: 800x1200 mm
Trays plate dimensions: 900x1300 mm
Output power of the generator: 15 kW / 20 kW / 30 kW / 45 kW
Feeding voltage (other voltages on demand): 400 V (+/- 5%) – 3 PHASE + EARTH - 50 Hz
